Features

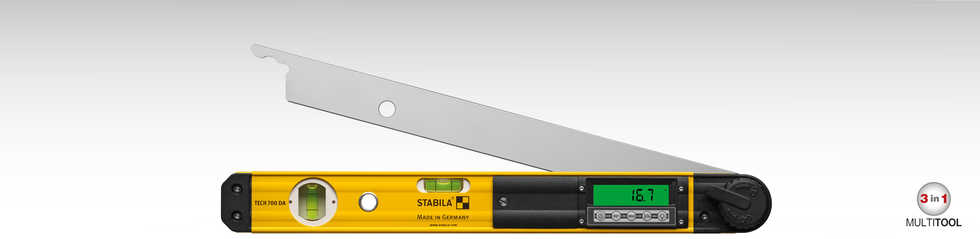

Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° – 270°.
Digital display with large digits and back-lighting that can be activated and dimmed.
LOCK function: locking mechanism for transferring angles reliably.
Vials which can be read easily, even when the arm is folded in.
Two particularly wide contact edges for accurate and reliable marking of angles in all positions.
REF function: allows a reference angle to be accepted, saved and then transferred to other components.
HOLD function: saves the measured value – for accurate measurements and quick transferring even in hard-to-see places.
Displays the angle bisectors at the touch of a button – ideal for quick and accurate miter cuts.
Switches off automatically if not used for 60 minutes.
Precise measuring results with an accuracy of ± 0.1°.
Protection class IP 54.
Includes bag.
Equipment: 1 digital display, 1 horizontal vial, 1 vertical vial, 2 coated measuring surfaces.

Technical data
Accuracy with electronic angle measurement +/-0.10°
Measurement accuracy in normal position±1/32in @ 72in mm/m
Measurement accuracy in reverse position±3/64in @ 72in mm/m
Protection class IP 54
Max. measuring range 270°
Measuring modes°
Number of batteries 2
